IoT-Based Remote Agriculture Automation System for Smart Farming

The IoT-Based Remote Agriculture Automation System for Smart Farming is designed to revolutionize traditional farming practices by integrating modern technology into farming operations. This project leverages IoT solutions to provide real-time monitoring and automated control of various farming tasks such as irrigation, lighting, and environmental control. The system includes sensors and actuators connected to a central microcontroller, enabling remote access and operation via the internet. This smart farming approach aims to enhance productivity, optimize resource usage, and ensure better crop management by providing actionable insights and automating repetitive tasks.

Objectives

To provide real-time monitoring of soil moisture levels and automate irrigation systems accordingly.

To reduce manual labor by automating environmental controls such as lighting and fans based on crop needs.

To improve crop management by providing actionable insights through data analytics.

To facilitate remote access and control of farming operations through a user-friendly interface.

To ensure optimal resource utilization, thereby promoting sustainable farming practices.

Key Features

Real-time soil moisture monitoring and automated irrigation system

Environmental control systems, including automated lighting and ventilation

User-friendly web interface for remote monitoring and control

Data analytics and reporting for informed decision-making

Energy-efficient design with smart resource management

Application Areas

The IoT-Based Remote Agriculture Automation System is highly versatile and can be applied across various agricultural settings. It is particularly beneficial for both large-scale commercial farms and small-scale farmers seeking to optimize crop yields and streamline farming operations. The system is suitable for diverse farming types, including horticulture, greenhouse farming, and open-field agriculture. Additionally, it can be used in research institutions for monitoring experimental crops and in educational settings to teach students about modern agriculture technologies. Through its ability to provide precise control and valuable data insights, this smart farming system supports sustainable agriculture practices and enhances overall farm productivity.

Detailed Working of IoT-Based Remote Agriculture Automation System for Smart Farming :

The IoT-Based Remote Agriculture Automation System for Smart Farming is a sophisticated integration of multiple components designed to enhance agricultural productivity and reduce manual labor. The central component of the system is the ESP32 microcontroller, which acts as the brain of the entire setup, coordinating various sensors and actuators. Situated at the heart of the system, the ESP32 is connected to multiple devices, ensuring seamless communication and control.

Starting from the ESP32, it connects to a four-channel relay module. This relay board is responsible for controlling high-power devices such as the water pump, LED grow light panel, and exhaust fan. The relay module enables the ESP32 to switch these devices on and off based on inputs from the connected sensors and pre-programmed logic. These actuators are crucial for maintaining optimal growing conditions in the agricultural setup.

Adjacent to the ESP32 is a soil moisture sensor, which is pivotal in determining the moisture levels in the soil. This sensor transmits analog signals to one of the analog input pins of the ESP32. By continuously monitoring the soil moisture content, the ESP32 can make informed decisions about when to activate the water pump, ensuring plants receive the right amount of water to thrive without excessive wastage.

Alongside the soil moisture sensor, a DHT11 sensor is connected to the ESP32, responsible for measuring ambient temperature and humidity. These environmental parameters are vital for plant growth and health. The data collected by the DHT11 sensor allows the microcontroller to determine whether to turn the exhaust fan on or off, maintaining a favorable microclimate within the agricultural environment. Proper ventilation is essential to regulate temperatures and prevent the overheating of plants, particularly in enclosed farming setups.

Another critical component is the water flow sensor, which is used to monitor the amount of water being delivered to the plants. This sensor sends pulse signals to the ESP32, which then calculates the flow rate and total volume of water dispensed. Such monitoring ensures that the irrigation system is functioning as intended and helps in preventing both overwatering and underwatering scenarios.

The system also includes an OLED display, which serves as a local user interface, displaying real-time data such as soil moisture levels, temperature, humidity, and water flow rates. This enables users to quickly assess the status of their agricultural environment without needing to access remote applications.

In addition to local monitoring, the ESP32 is equipped with Wi-Fi capabilities, facilitating the IoT aspect of the system. It communicates with a remote server or cloud platform, transmitting data collected from the sensors and receiving control commands. This connectivity allows users to monitor and manage their farming operations from anywhere in the world through a web application or a mobile app. The remote accessibility is particularly beneficial for timely interventions and automating farming tasks based on real-time environmental data.

Powering the entire system is a step-down transformer, which converts the high-voltage AC from the main power supply into a safer, low-voltage DC suitable for operating the various electronic components. Ensuring the correct power levels are essential for the functioning and longevity of the sensors, microcontroller, and actuators.

In essence, the IoT-Based Remote Agriculture Automation System for Smart Farming represents a convergence of IoT technology and agriculture, aiming to optimize resource usage and improve crop yields. By automating key processes such as irrigation, lighting, and ventilation, the system reduces the dependency on manual labor while ensuring plants get the optimal care needed for growth and productivity. The integration of remote monitoring and control further enhances the farmer's ability to manage their crops efficiently and respond promptly to any issues, thereby fostering a more sustainable and high-performing agricultural practice.

Modules used to make IoT-Based Remote Agriculture Automation System for Smart Farming :

Power Supply Module

The power supply module is the backbone of the IoT-Based Remote Agriculture Automation System. It involves a transformer, a rectifier, and voltage regulators to ensure consistent voltage levels needed by the various components. The transformer steps down the 220V AC main supply to 24V AC. The rectifier then converts this AC voltage to DC voltage. Finally, voltage regulators ensure stable voltage outputs suitable for the microcontroller and sensors, typically 3.3V and 5V. This module ensures the other components are powered reliably, facilitating an uninterrupted flow of operations within the system.

Microcontroller Module

At the heart of the system lies the microcontroller (ESP8266 in this case). This module gathers data from various sensors and processes it to make decisions regarding agricultural activities. It has built-in Wi-Fi capability, allowing it to send and receive data from a remote server or smartphone application. The microcontroller reads the data from connected sensors, executes programmed algorithms based on this data, and then sends control signals to actuators like relays, light panels, and pumps. The processed data and system status can also be displayed on an LCD screen connected to the microcontroller.

Sensor Module

The sensor module is vital for monitoring environmental conditions. This project includes soil moisture sensors and a DHT11 sensor for temperature and humidity. The soil moisture sensor measures the volumetric water content in the soil and sends this data to the microcontroller. The DHT11 sensor determines the atmospheric temperature and humidity. By collecting real-time data, the sensors inform the microcontroller about the current status of the environment. This data flows continuously to help the system make informed decisions about irrigation and other agricultural interventions.

Actuator Module

The actuator module comprises components like relays, a water pump, a cooling fan, and an LED light panel. Relays act as switches controlled by the microcontroller to turn on/off the actuators. Based on sensor data, the microcontroller sends signals to these relays. For instance, if the soil moisture is below a certain threshold, the relay activates the water pump to irrigate the soil. Similarly, based on temperature readings, the fan may be switched on or off to regulate greenhouse conditions. The LED panel provides supplementary light, essential for photosynthesis, and is controlled by the microcontroller via a relay.

Display Module

The display module includes an LCD screen that provides real-time data visualization for the user. It usually interfaces with the microcontroller and displays crucial information such as soil moisture levels, temperature, and humidity readings. This immediate feedback is helpful for users to monitor the system's operation directly without needing additional devices. The microcontroller periodically updates this display with the latest readings, ensuring the data presented is current and accurate.

Communication Module

This module leverages the built-in Wi-Fi capability of the ESP8266 microcontroller to facilitate remote monitoring and control. The system connects to the internet and uses protocols like MQTT or HTTP to communicate with a cloud server or a smartphone application. Data collected from sensors is transmitted to the cloud database, where it can be accessed through a user interface. Similarly, remote commands from the user interface can be sent to control the actuators. This bidirectional communication allows for efficient and responsive management of the agricultural system from any location.

Components Used in IoT-Based Remote Agriculture Automation System for Smart Farming :

Power Supply Module

Transformer
Converts 220V AC to lower voltage to supply to the circuit.

Rectifier
Converts AC voltage from transformer to DC voltage for circuit use.

Voltage Regulators
Regulates the DC voltage to desired levels for specific components.

Sensing Module

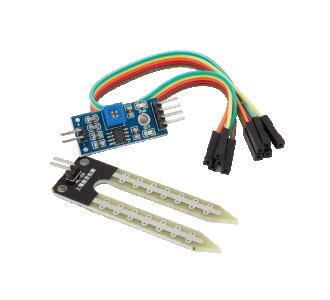

Soil Moisture Sensor
Measures the moisture level in the soil to determine irrigation needs.

DHT11 Sensor
Measures temperature and humidity levels for monitoring environmental conditions.

Actuation Module

Relay Module
Controls high voltage devices like water pump, fan, and light based on microcontroller signals.

Water Pump
Pumps water to the fields when irrigation is required.

Cooling Fan
Activates to cool down the environment under specific conditions.

Grow Light
Provides artificial light to crops in low light conditions.

Control Module

ESP8266 Wi-Fi Module
Enables wireless communication for remote monitoring and control.

Display Module

LCD Display
Displays real-time data like temperature, humidity, and soil moisture levels.

Other Possible Projects Using this Project Kit:

1. Smart Home Automation System

Using the components in this kit, you can create a Smart Home Automation System. This project can turn standard home devices into smart devices that can be controlled remotely over the Internet. The relay module can be used to switch household appliances on and off, the temperature and humidity sensor can provide environmental data to adjust HVAC systems, and the ESP8266 Wi-Fi module can relay commands and status updates to a central control application on a smartphone or PC. This system can also integrate with other IoT devices and platforms, providing comprehensive control over lighting, fans, and other electrical appliances, enhancing home comfort and energy efficiency.

2. Smart Irrigation System

Build a Smart Irrigation System that automates watering schedules based on soil moisture levels and weather forecasts. The soil moisture sensor can measure the current moisture content of the soil, and the data can be processed by the ESP8266 Wi-Fi module. If the soil is too dry, the relay module can activate the water pump, ensuring plants get the optimal amount of water. Additionally, using weather forecasts via the IoT network, the system can prevent watering during rain, conserving water and promoting efficient irrigation practices. This project can significantly help in reducing water consumption while ensuring the healthy growth of plants.

3. Environmental Monitoring System

With this project kit, you can create an Environmental Monitoring System to track various environmental parameters like temperature, humidity, and soil moisture. The DHT11 sensor will provide temperature and humidity data, while the soil moisture sensor will give real-time soil moisture readings. The combined data can be transmitted to a cloud platform using the ESP8266 Wi-Fi module, where it can be analyzed to monitor trends and make informed decisions. This system can be crucial for research in climate change, agricultural practices, or even for personal garden monitoring, providing essential insights into the environmental conditions in a specified location.

4. Automated Hydroponics System

Design an Automated Hydroponics System using this kit to optimize the growth conditions of plants growing in nutrient-rich water solutions instead of soil. The system can use the sensors to monitor water level, nutrient concentration, and environmental conditions like temperature and humidity. The data collected will be processed by the ESP8266 Wi-Fi module which can automate the addition of water and nutrients using the relay module to control pumps and solenoid valves. This project ensures precise control over the growing environment, leading to better plant growth rates and higher yields, and it can also minimize the need for manual intervention.
