IoT-Based System for Monitoring pH Levels in Environmental Water Sources

Monitoring the pH levels in environmental water sources is crucial for maintaining the health of aquatic ecosystems and ensuring safe water quality for human consumption and other uses. This project involves developing an IoT-based system that continuously monitors the pH level of water sources, providing real-time data that can be accessed remotely. The system utilizes a pH sensor interfaced with a microcontroller connected to the internet, allowing for data collection, storage, and analysis on a cloud-based platform. The objective is to facilitate timely and informed decision-making in water resource management using advanced technology.

Objectives

- To develop a reliable IoT-based system for continuous monitoring of pH levels in water sources.

- To provide real-time pH level data accessible remotely via the internet.

- To integrate data storage and analysis features for long-term monitoring and trend analysis.

- To utilize cloud-based platforms for data visualization and reporting.

- To contribute to improved water resource management and pollution control.

Key Features

- Real-time monitoring of pH levels using high-precision pH sensors.

- Internet-enabled microcontroller for remote data access and control.

- Data storage on cloud platforms for historical analysis and report generation.

- User-friendly interface for data visualization via web or mobile applications.

- Alerts and notifications for abnormal pH levels through SMS or email.

Application Areas

The IoT-Based System for Monitoring pH Levels in Environmental Water Sources can be applied in various areas. It is particularly useful in environmental monitoring of rivers, lakes, and oceans to detect pollution levels and take timely corrective actions. It can also be utilized in agriculture to ensure the quality of irrigation water, which impacts crop productivity. Municipal water supply systems can employ this system to monitor water quality, ensuring it meets health and safety standards for public consumption. Additionally, it can be used in industrial effluent monitoring, helping in compliance with environmental regulations by keeping discharge levels within permissible limits.

Detailed Working of IoT-Based System for Monitoring pH Levels in Environmental Water Sources :

The IoT-Based System for Monitoring pH Levels in Environmental Water Sources is designed to provide real-time data on the acidity or alkalinity of water sources. The system's heart is an ESP-WROOM-32 microcontroller, which processes data from various sensors and sends it to the cloud for monitoring and analysis.

The circuit is powered by a 24V AC power source converted from a 220V AC mains supply using a step-down transformer. This transformer ensures the system operates at a safer, lower voltage. The AC voltage is then rectified and regulated using a bridge rectifier and a voltage regulator circuit, providing the necessary 5V DC required for the operation of the pH sensor, ESP-WROOM-32, and other electronic components.

The primary component for measuring pH levels is the pH sensor module, which consists of a pH probe and associated circuitry. The pH probe is immersed in the water source, and it detects the hydrogen ion concentration, generating a corresponding voltage signal. This analog signal is fed into an analog-to-digital converter (ADC) in the ESP-WROOM-32 microcontroller. The microcontroller processes this data and converts it into a readable pH value.

In addition to the pH sensor, the system includes multiple water flow sensors connected to different inlets and outlets for comprehensive monitoring of water flow rates. These sensors provide pulse signals proportional to the flow rate, which are read by the ESP-WROOM-32. This data is crucial for ensuring that water samples are being taken consistently and for correlating pH levels with flow rates.

A relay module is incorporated into the circuit to control various system operations, like activating the pH probe or initiating water flow whenever necessary. The ESP-WROOM-32 sends control signals to the relay module, which switches the connected devices on or off accordingly. This setup allows for automated and efficient sampling of water, enhancing the reliability of the data collected.

The processed data from the sensors is displayed on a connected LCD screen, providing real-time feedback on the system's status and the pH levels of the water source. This immediate visual representation helps in quick decision-making and analysis. The LCD is wired to the ESP-WROOM-32, which continuously updates the display with new data.

To ensure thorough and effective monitoring, the system also includes a buzzer alarm system. The buzzer is programmed to activate when the pH level goes beyond a predefined safe range, providing an audible alert to take necessary actions. This feature improves the system's utility in scenarios where constant manual supervision might not be feasible.

For remote monitoring and control, the data from the ESP-WROOM-32 is transmitted over WiFi to a cloud-based platform. This IoT functionality allows users to access real-time data from anywhere with an internet connection. Through a web or mobile application, users can visualize trends, set alerts, and make informed decisions based on the collected data.

In summary, the IoT-Based System for Monitoring pH Levels in Environmental Water Sources integrates advanced sensors, data processing, real-time visual feedback, and IoT connectivity to provide a comprehensive solution for environmental monitoring. By combining these technologies, the system ensures accurate, reliable, and actionable information about the water sources' pH levels, contributing to better environmental management and protection.

Modules used to make IoT-Based System for Monitoring pH Levels in Environmental Water Sources :

1. Power Supply and Regulation Module

The power supply and regulation module is responsible for providing a stable power source to all the other components in the system. This module typically includes a transformer to step down the AC voltage from a standard power outlet (220V) to a lower AC voltage (24V). This reduced voltage is then converted to DC using a rectifier circuit. Subsequently, voltage regulators (such as the LM7812 and LM7805) ensure that the voltage levels are stabilized and set to 12V and 5V, respectively, which are suitable for the various electronic components. The regulated power is then distributed to the pH sensor, microcontroller, LCD display, and other peripheral devices in the circuit.

2. pH Sensor Module

The pH sensor module is the core component responsible for measuring the acidity or alkalinity of the water samples. It consists of a pH probe that is inserted into the water source. The probe generates a small voltage that varies with the pH level of the water. This voltage signal is quite weak and therefore needs to be amplified and conditioned by a pH sensor interface circuit. The conditioned signal is then read by an analog-to-digital converter (ADC) within the microcontroller. This digital representation of the pH value is processed to provide meaningful pH readings, which are necessary for monitoring environmental water quality.

3. Microcontroller Module

The microcontroller module serves as the brain of the system. In this project, an ESP-WROOM-32 microcontroller is used. This module is responsible for acquiring data from the pH sensor, processing the data, and managing communication between different components. It reads the analog output from the pH sensor after signal conditioning, converts this analog signal to a digital value using its built-in ADC, and then processes the data to calculate the pH value. The microcontroller also interfaces with the LCD display to show real-time pH levels, interacts with the relay module to control external devices based on the water quality, and handles Wi-Fi communication to send the data to a remote server for IoT applications.

4. LCD Display Module

The LCD display module provides a user interface for real-time monitoring of pH levels. It connects to the microcontroller through a suitable interface (such as I2C or parallel connections) and displays the pH values processed by the microcontroller. This allows users in the field to instantly see the current pH levels of the water without needing to access the remote server. The display can also show other relevant information such as system status, error messages, and network connectivity status. This module enhances the usability of the system by providing immediate visual feedback.

5. Relay Module

The relay module acts as a bridge between the low-power microcontroller and high-power devices such as pumps, motors, or alarms. The relay module typically contains multiple relays that can be controlled individually by the microcontroller. When the microcontroller sends a signal to the relay module, it can switch on or off the connected high-power devices. This is particularly useful for initiating corrective actions when the pH levels go beyond a specified range, such as activating a chemical dosing pump to neutralize the water. The relay module ensures safe and isolated control of these high-power devices.

6. Wi-Fi and IoT Communication Module

The Wi-Fi and IoT communication module enables the system to connect to the internet and transmit pH data to a remote server. Using the built-in Wi-Fi capabilities of the ESP-WROOM-32 microcontroller, the system can connect to a local Wi-Fi network. Once connected, the microcontroller sends the processed pH data to a predefined server or cloud platform using standard internet protocols like HTTP or MQTT. This allows remote monitoring and analysis of water quality data in real time. Users can access this data through a web interface or mobile application, enabling proactive environmental monitoring and decision-making.

Components Used in IoT-Based System for Monitoring pH Levels in Environmental Water Sources :

Power Supply:

220V to 24V Transformer: Converts high voltage AC electricity from mains supply to a lower, safer voltage suitable for the circuit.

Voltage Regulators (LM7812 and LM7805): Ensures stable output of 12V and 5V DC respectively, which is required for various components in the circuit.

pH Sensing Module:

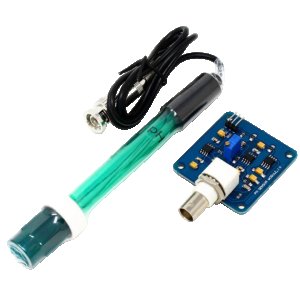

pH Sensor Electrode: Senses the pH level of the water sample, providing an analog output that corresponds to the acidity or alkalinity of the water.

pH Sensor Module: Converts the raw signal from the pH sensor electrode to a form that can be read by the microcontroller.

Microcontroller and Communication Module:

ESP-WROOM-02 (ESP8266): The main microcontroller that processes the pH sensor data and sends it to a remote server via WiFi.

Display Module:

LCD Display: Displays the pH level readings in real-time for easy monitoring by the user.

Relay Module:

4-Channel Relay Module: Allows the microcontroller to control high-voltage devices like pumps and valves remotely and safely.

Pumping and Water Flow Module:

Water Pumps: Moves water samples from the environment to the sensing chamber for pH measurement.

Water Flow Sensors: Measures the rate of water flow to ensure proper sampling and provide feedback for system adjustments.

Miscellaneous:

Resistors and Capacitors: Used for configuring the correct voltages, filtering, and ensuring stable operation of the circuit.

Buzzer: Provides audio alerts for alarm conditions such as out-of-range pH levels or system errors.

Other Possible Projects Using this Project Kit:

1. IoT-Based Water Quality Monitoring System

Using the same project kit, you can develop an IoT-based system for monitoring various water quality parameters. By integrating sensors for Temperature, Turbidity, Dissolved Oxygen, and Electrical Conductivity along with the pH sensor present in the kit, you can gather comprehensive water quality data. The collected data can be transmitted to a cloud platform in real-time using the onboard ESP8266 Wi-Fi module. This setup can help in continuously monitoring water quality in rivers, lakes, and reservoirs, providing valuable insights and alerts in case of water contamination, thus protecting aquatic ecosystems and ensuring safe water for various uses.

2. Automated Hydroponics System

With the components available in the project kit, you can create an automated hydroponics system to control pH levels and water flow in a hydroponic farming setup. The pH sensor can regularly monitor the nutrient solution's pH level, while the relay module can control the pumps to add pH up or down solutions as needed. Additionally, the water flow sensors and the relay module can ensure the appropriate nutrient solution flow to the plant roots. Integrating IoT capabilities allows remote monitoring and adjustments through a smartphone or web application, ensuring optimal growth conditions for hydroponic plants.

3. Smart Aquaponics Monitoring System

Developing a smart aquaponics monitoring system can be an interesting project utilizing the kit's components. In an aquaponics setup, maintaining the water quality is critical for the health of both fish and plants. Using the pH sensor to monitor the water's acidity, the relay module to control water pumps and aerators, and the ESP8266 module for data transmission, this system can ensure the optimal conditions for the aquatic and plant life. Integration with a cloud platform for real-time monitoring and alerting ensures timely interventions, resulting in a balanced and healthy aquaponic environment, enhancing both fish and plant productivity.

4. IoT-Based Swimming Pool Monitoring System

You can use the kit to build an IoT-based system for monitoring the conditions of a swimming pool. The pH sensor can ensure that the pool water stays within a safe pH range, crucial for preventing skin irritation and ensuring proper sanitation. The relay module can automate the pool's filtration and chlorination systems based on real-time data. By connecting the set-up to the internet via the ESP8266, pool owners can remotely monitor and control the pool’s water quality, temperature, and filtration system through a dedicated app, leading to efficient pool management and convenience.
