IoT-Based Automatic Door Control System with Android App Integration

The "IoT-Based Automatic Door Control System with Android App Integration" project aims to enhance security and convenience by enabling automated control of door mechanisms through an Android application. This smart system leverages the Internet of Things (IoT) to allow users to operate and monitor door statuses remotely. Integrated with various sensors and an ESP8266/NodeMCU microcontroller, this solution ensures reliable performance and ease of installation. The project also includes a user-friendly interface for seamless interaction via an Android app, providing real-time updates and notifications, thereby improving the security and management of access points in homes and offices.

Objectives

1. Develop a system for automated door control using IoT components.

2. Implement an Android application for remote door operation and monitoring.

3. Ensure secure and reliable communication between the app and the control system.

4. Integrate sensors for real-time status updates and security alerts.

5. Provide a user-friendly interface for easy management of multiple doors.

Key Features

1. Remote control of doors via an Android app

2. Real-time status monitoring of door positions

3. Integration with motion and proximity sensors for enhanced security

4. Secure communication using Wi-Fi and MQTT protocols

5. User-friendly interface with notifications and alerts

Application Areas

The "IoT-Based Automatic Door Control System with Android App Integration" has a wide range of applications in both residential and commercial settings. In homes, it provides enhanced security by automating the control of main entrances, garages, and indoor doors, enabling residents to manage access conveniently from their smartphones. In office environments, the system can streamline access management to secure areas, such as server rooms and confidential meeting spaces, ensuring that only authorized personnel can enter. Additionally, this system can be extended to public buildings and facilities, improving security, access control, and monitoring efficiency, thus promoting a smarter and safer environment.

Detailed Working of IoT-Based Automatic Door Control System with Android App Integration :

In the digital age, ensuring the security of our homes and buildings has become paramount. The IoT-based Automatic Door Control System with Android App Integration presents a sophisticated solution to this challenge. By leveraging IoT technology, this system integrates hardware components to control door operations remotely via an Android application. Let's delve deeper into the workings of this innovative circuit.

At the heart of this system is the ESP8266 microcontroller, a robust module known for its Wi-Fi capabilities. The ESP8266 serves as the brain of the operation, acting as a bridge between the Android app and the mechanical components of the door system. It receives commands from the app and processes them to control the door's movement. For connectivity, the microcontroller is equipped with necessary pins to interface with various components.

Powering the system is a 24V transformer connected to the main AC supply (220V). This transformer steps down the voltage to a manageable level suitable for the circuit components. The rectifier circuit, comprising diodes, converts the AC voltage from the transformer into DC. This DC voltage, filtered by a capacitor, provides a stable power supply essential for the smooth operation of the entire system.

The DC motor, responsible for the actual movement of the door, is controlled by an L298N motor driver module. This module interprets signals from the ESP8266 and accordingly drives the motor either to open or close the door. The motor's rotation direction is regulated by the motor driver, ensuring precise control over the door's position. Limit switches are installed to determine the door's fully open and fully closed positions, providing feedback to the ESP8266.

An LCD display is integrated into the system to provide real-time feedback to the user. For instance, it can display the door's current status, such as 'Opening,' 'Closing,' 'Opened,' or 'Closed.' This information is crucial as it allows the user to monitor the door's operation without relying solely on the Android app. The LCD is interfaced with the ESP8266 using multiple connection wires, ensuring clear and immediate display of statuses.

Additionally, two push buttons are included in the circuit, giving users a manual control option. These buttons serve as a backup or an alternative to the Android app, allowing for direct interaction with the door control system. Pressing one button may trigger the door to open, while the other closes it. The ESP8266 scans these button inputs and executes the corresponding commands.

In terms of communication, the Android app sends commands to the ESP8266 over a Wi-Fi network. The ESP8266 microcontroller, being Wi-Fi enabled, receives these instructions and processes them to control the door movement. This seamless communication is facilitated by the IoT infrastructure, providing a user-friendly and efficient interface for door control. The system ensures that only authorized users can send commands, safeguarding the security aspect.

In conclusion, the IoT-based Automatic Door Control System with Android App Integration exemplifies modern advancements in security technology. By integrating an ESP8266 microcontroller, a DC motor with an L298N driver module, an LCD display, manual control buttons, and an Android app interface, the system offers a comprehensive solution for automated door control. This integration not only enhances security but also provides a convenient and intuitive way to manage access to homes and buildings.

Modules used to make IoT-Based Automatic Door Control System with Android App Integration :

Power Supply Module

The power supply module is the foundational block of the IoT-Based Automatic Door Control System. The primary input to this module is AC voltage, typically 220V, which is then stepped down to a safer voltage level, usually 24V AC, using a transformer. This 24V AC is then converted to DC voltage with the help of rectifiers and filter capacitors, providing a stable DC voltage to power the other modules in the system. Reliable power delivery is essential for ensuring that all components function correctly and consistently, including the WiFi module, motor driver, and sensors.

Microcontroller Module (ESP8266)

The ESP8266 acts as the brain of the system, serving as the primary microcontroller. It is responsible for communication, processing inputs, and controlling outputs. The ESP8266 connects to the WiFi network, allowing remote control through an Android application. It receives commands from the Android app using HTTP or MQTT protocols, processes these commands, and then sends appropriate signals to the motor driver to open or close the door. It also reads sensor data and can trigger events or send notifications based on specific conditions. The ESP8266 ensures that all modules work in harmony towards the goal of automated door control.

Bluetooth Module (Optional)

In some configurations, a Bluetooth module may be added for local wireless communication. This allows the system to be controlled directly via Bluetooth from the Android app when a WiFi connection is unavailable. The module receives signals from the Android app and transmits them to the ESP8266 microcontroller. Careful integration ensures seamless switching between WiFi and Bluetooth control, enhancing the system's flexibility and reliability. The inclusion of Bluetooth support provides a fallback communication method that maintains functionality even in environments without WiFi.

Motor Driver Module (L298N)

The motor driver module (L298N) controls the motion of the door by sending power to the motor in the right direction. The L298N module is connected to the ESP8266, which sends control signals based on input received from sensors or the Android application. The motor driver can manipulate the motor to open or close the door by reversing the motor's polarity. It ensures that the motor operates efficiently and safely, managing high current flow required for the motor operation without overloading the microcontroller.

Sensor Module (Limit Switches)

Limit switches act as the sensory inputs for the system, detecting the physical position of the door. Two limit switches are typically placed at the fully open and fully closed positions of the door. As the door moves, it interacts with these switches, sending a signal back to the ESP8266 microcontroller, indicating that the door has reached a specific position. This helps to automatically stop the motor to prevent damage from overextension or over-retraction. The switches thus play a vital role in ensuring the door operates within its intended limits.

Relay Module

A relay module might be used to interface the microcontroller with higher voltage components, allowing the safe and efficient control of the motor and potentially other peripherals. The relay acts as a switch that can be controlled by the low voltage output from the microcontroller, enabling it to control high voltage components like the door motor indirectly. This ensures electrical isolation between the high and low voltage sections of the circuit, protecting the microcontroller from potential damage due to high voltage spikes or currents.

Display Module (LCD)

An LCD (Liquid Crystal Display) module is used to display system status and information such as door position, connection status, or error messages. The LCD is connected to the ESP8266, usually via I2C or parallel communication. By providing real-time feedback, users can understand what the system is doing and if any action is needed. The display enhances user interaction and helps in the troubleshooting process, ensuring the system is user-friendly and easy to manage.

Android App Integration

The Android application acts as the user interface for remote control and monitoring of the door system. Users can send open/close commands via the app, which communicates with the ESP8266 over the internet or directly via Bluetooth, depending on the configuration. The app also receives status updates from the ESP8266, providing users with real-time information on the door's state. This integration ensures that users can manage the door remotely with ease, enhancing convenience and security. The app interfaces seamlessly with the microcontroller, ensuring robust control and feedback loops.

Components Used in IoT-Based Automatic Door Control System with Android App Integration:

Power Supply Module

Transformers: Step down AC voltage from 220V to 24V for safe use with electronic components.

Rectifier Diodes: Converts AC voltage from transformer to pulsating DC voltage.

Capacitors: Smooth out the rectified voltage to produce a steady DC output.

Control Unit

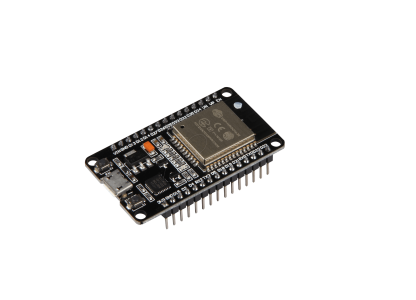

ESP8266 (or similar microcontroller): Main processing unit that runs the control logic and handles communication with the Android app.

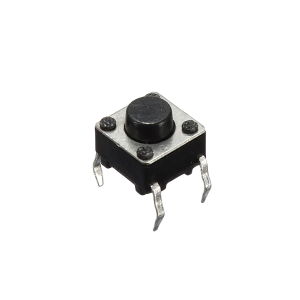

Push Buttons: Used to manually open or close the door and to initiate certain control functions manually.

Motor Driver Circuit

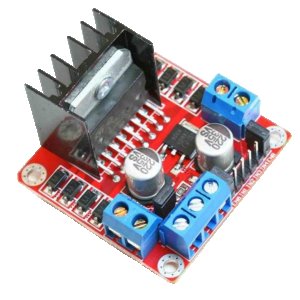

L298N Motor Driver: Interfaces between the microcontroller and DC motor, allowing the controller to manage motor operations (opening and closing the door).

DC Motor: Physical actuator that moves the door open or close based on control signals received from the motor driver.

Display Unit

LCD Display: Shows the current status of the door (open, closed, opening, closing) and can also display messages from the control unit.

Sensor Module

Limit Switches: Detect the fully open or fully closed position of the door, providing feedback to the controller to stop the motor.
