IoT and Arduino-Based Traffic Management System for Reducing Congestion

The "IoT and Arduino-Based Traffic Management System for Reducing Congestion" is an innovative approach to optimizing traffic flow and decreasing congestion on busy roadways. Leveraging the capabilities of the Internet of Things (IoT) and Arduino microcontrollers, this system aims to dynamically manage traffic signals, collect real-time traffic data, and provide adaptive responses to varying traffic conditions. By integrating sensors, data processing units, and communication modules, the project seeks to enhance the efficiency of urban transportation networks, reduce travel times, and minimize traffic-related emissions.

Objectives

- To minimize traffic congestion through intelligent traffic signal control.

- To collect and analyze real-time traffic data for adaptive decision-making.

- To enhance road safety by reducing the likelihood of traffic jams and accidents.

- To provide a scalable solution adaptable to various urban environments.

- To decrease carbon emissions by optimizing vehicle flow and reducing idle times.

Key Features

1. Real-time traffic monitoring using sensors and cameras.

2. Dynamic control of traffic lights based on traffic conditions.

3. Integration with IoT devices for data collection and communication.

4. A user-friendly interface for system monitoring and management.

5. Alert and notification system for traffic incidents and irregularities.

Application Areas

The IoT and Arduino-Based Traffic Management System can be utilized in various urban and semi-urban settings to manage traffic flow effectively. Its applications include metropolitan city centers, where high vehicle density requires sophisticated handling, and suburban areas, which can benefit from improved traffic signal coordination during peak hours. This system can be particularly beneficial in reducing congestion at major intersections, thereby enhancing overall traffic efficiency. Additionally, it can be integrated with smart city initiatives to further improve urban living conditions by ensuring smoother vehicular movement, enhancing public safety, and contributing to environmental sustainability through reduced vehicular emission.

Detailed Working of IoT and Arduino-Based Traffic Management System for Reducing Congestion :

The IoT and Arduino-Based Traffic Management System is meticulously designed to reduce traffic congestion by efficiently managing the dynamics of vehicles at intersections. The heart of the system is an Arduino microcontroller, which coordinates various sensors, Wi-Fi modules, and LED indicators. Let's delve into the comprehensive functioning of this circuit, starting from the sensors to the data visualization and decision-making process.

The system is powered by a 220V AC main supply, which is stepped down to a manageable 24V DC using a transformer. This power supply is then further regulated and filtered to ensure a steady operation of the Arduino microcontroller and other connected components. Two key sensors, an Infrared (IR) sensor and an ultrasonic sensor, are placed strategically to detect the vehicles approaching the intersection.

Upon detection of a vehicle, the IR sensor sends a signal to the Arduino, indicating the presence and, possibly, the position of the vehicle. Simultaneously, the ultrasonic sensor measures the distance from the sensor to the vehicle, providing additional information regarding the number of vehicles and their speed. These sensors are connected to the digital input pins of the Arduino, which reads the incoming signals and processes them in real time.

The processed data triggers the appropriate response from the Arduino, which is connected to an array of LED indicators representing traffic lights. The LEDs, arranged in red, yellow, and green, are connected to various digital output pins of the Arduino. Depending on the traffic density and the urgency conveyed by the sensor data, the Arduino switches the LEDs on and off to either halt or allow the traffic flow. For example, a high volume of vehicles detected in one direction will prompt the system to extend the green light duration for that particular lane while causing red lights to activate for the crossing lanes.

An essential component in the system is the ESP8266 Wi-Fi module, which facilitates real-time data transmission to a central server. This IoT module is connected to the Arduino through serial communication. The traffic data, including the vehicle count, speed, and intersection status, is transmitted via the Wi-Fi module to the cloud-based server. This data is then accessible through a web-based dashboard that provides visual analytics of the traffic conditions at the intersection, offering insights for future optimizations.

Further enhancing the system's functionality is the integration of an RTC (Real-Time Clock) module. The RTC ensures that the traffic lights follow a predetermined schedule during non-peak hours, reducing energy consumption and wear on the LEDs. Additionally, the Arduino leverages the RTC data to log events with precise timestamps, offering valuable data for retrospective traffic analysis.

When examining the power circuit closely, you’ll notice capacitors and voltage regulators ensuring a smooth 5V supply for the electronics. This reliable power management is crucial for the uninterrupted operation of the sensors and communication modules.

In summary, the IoT and Arduino-Based Traffic Management System employs a robust combination of sensors, microcontrollers, and IoT modules to dynamically manage and reduce traffic congestion. By processing real-time sensor data, making intelligent traffic light decisions, and transmitting this data for remote monitoring, the system significantly enhances the efficiency of urban traffic management. This integrative approach promises a future where traffic jams are minimized, and urban mobility is significantly improved.

Modules used to make IoT and Arduino-Based Traffic Management System for Reducing Congestion :

1. Power Supply Module

The power supply module is critical for providing the necessary power to the components in the circuit. In the provided image, the system includes a 220V AC power transformer that steps down the voltage to a manageable level (24V), which is further regulated and filtered using voltage regulators, capacitors, and diodes. This setup ensures a stabilized DC voltage is supplied to the Arduino board and other connected components. Proper grounding and voltage levels are maintained to prevent damage and ensure stable operation of the microcontroller and sensors. The smooth operation of the power supply directly impacts the performance and reliability of the traffic management system.

2. Microcontroller (Arduino) Module

The Arduino microcontroller acts as the central unit in the traffic management system. It receives data from various input sensors and processes this data to control the traffic signal LEDs and communicate with the IoT module. The Arduino board is programmed to manage traffic flow by calculating the optimal timing for green, yellow, and red lights based on real-time traffic conditions. It also sends data to the IoT module for remote monitoring and control. The functioning of the Arduino is critical as it is responsible for executing the logic that reduces congestion by dynamically adjusting traffic signals based on sensor inputs.

3. Sensor Module

The sensor module consists of multiple infrared (IR) sensors placed at different points to detect the presence and density of vehicles. These sensors send real-time data to the Arduino, which processes the data to determine traffic conditions. The accurate detection of vehicles by these sensors helps the system in deciding which traffic light should be green, amber, or red. This module plays a crucial role in monitoring traffic density, which is used to make decisions to avoid congestion and optimize traffic flow efficiently.

4. Traffic Light Module

The traffic light module includes LEDs representing traffic signals (red, yellow, green) and is connected to the Arduino. Based on the sensor data, the Arduino sends signals to these LEDs to change their states. This module directly controls the flow of traffic by changing lights at intersections to manage vehicle movement. The synchronization and timing of these traffic lights are crucial to reducing congestion, and the Arduino ensures that the lights are switched in accordance with the current traffic situation as detected by the sensors.

5. IoT Communication Module

The IoT communication module, typically consisting of a Wi-Fi or GSM module, allows the Arduino to connect to the internet. This module facilitates remote monitoring and management of the traffic system via a cloud server or a dedicated application. Data about traffic conditions can be sent to a central server for further analysis, and control commands can be sent back to adjust traffic light timings in real-time. This connectivity enhances the system's ability to adapt to varying traffic patterns and enables city-wide traffic management from a centralized command center, significantly improving the overall efficiency of traffic flow management.

Components Used in IoT and Arduino-Based Traffic Management System for Reducing Congestion :

Power Supply Module

Transformer
Converts high-voltage AC from the power outlet to a lower voltage suitable for the circuit.

Bridge Rectifier
Converts the AC output from the transformer to DC.

Capacitor
Smooths out the DC from the rectifier to a more stable voltage.

Voltage Regulator
Ensures the output voltage remains steady and suitable for the Arduino.

Controller Module

Arduino Uno
The primary microcontroller that processes data and controls all connected components.

Input Sensors Module

IR Sensors
Detects the presence of vehicles by sensing the infrared light reflected from them.

Output Indicators Module

LEDs (Green, Yellow, Red)
Indicates the traffic signal status to manage vehicular traffic.

Communication Module

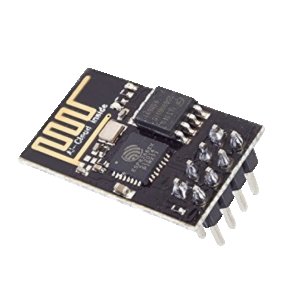

ESP8266 Wi-Fi Module
Enables wireless communication between the Arduino and remote servers for IoT integration.

Other Possible Projects Using this Project Kit:

1. Smart Parking System

The components used in the IoT and Arduino-Based Traffic Management System can be repurposed to build a Smart Parking System. Using Arduino and sensors, parking slots can automatically detect the presence of a vehicle and send the status to a cloud platform or app. This information helps drivers identify available parking spaces in real time, reducing time spent searching for parking and reducing congestion around parking areas. The status lights (LEDs) will indicate if a parking spot is available (green) or occupied (red), and an IoT module will upload this data to a central server, which can be accessed through a smartphone application.

2. Environmental Monitoring System

An IoT-based Environmental Monitoring System can be created using similar components. The sensors in the project kit can measure different environmental parameters such as air quality, temperature, and humidity. By using an Arduino board and the ESP8266 Wi-Fi module, these readings can be sent to a cloud server for storage and analysis. This system can be employed in urban areas to monitor pollution levels and weather conditions, providing data that can be used for research, urban planning, and public health advisories.

3. Automated Street Lighting System

Using the same project kit, an Automated Street Lighting System can be developed to improve energy efficiency in urban areas. Light sensors can detect ambient light levels, and based on this, the Arduino can control the street lights, turning them on during the night and off during the day. Integrating an IoT module will allow for remote monitoring and control of lights, enabling smart city management systems to reduce energy consumption and manage maintenance schedules efficiently. This system ensures that street lights are used only when necessary, contributing to significant energy savings.

4. Smart Agriculture Monitoring System

An IoT and Arduino-based Smart Agriculture Monitoring System can be developed to help farmers optimize their farming processes. By connecting soil moisture sensors, temperature sensors, and humidity sensors to the Arduino, farmers can monitor soil and atmospheric conditions in real time. Data collected can be sent to a cloud platform via the Wi-Fi module, where it can be accessed through a web or mobile application. This system could provide insights for irrigation scheduling, thus conserving water and improving crop yields. Moreover, integrating automated irrigation systems with this setup can make the farming process more efficient and sustainable.

5. Home Automation System

By using the existing components, a Home Automation System can be designed to control home appliances remotely. The sensors can monitor various aspects such as room temperature, lighting conditions, and human presence. By connecting these sensors to an Arduino board and using relays, appliances like lights, fans, and thermostats can be controlled automatically based on sensor readings or via a mobile app interface. The Wi-Fi module will enable remote access, allowing users to control and monitor their home environment from anywhere in the world. This setup can lead to increased convenience, energy savings, and enhanced security.
